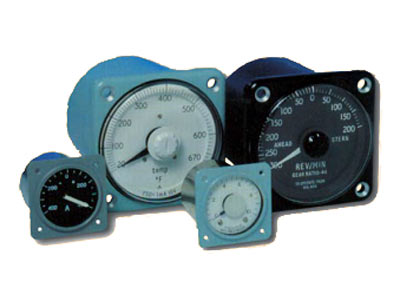

Hermetically Sealed Moving Coil Indicators - Manufactured To DEF STAN 66-7
Type - 2AH & 4AH

2 standard sizes, to DEF 66-7
• Accuracy to +/-1% (class 1).
• Long scale 240° Presentation.
• Dial markings to customer’s requirements
• Hermetically sealed case.
• Robust "PREMIER" pivot & jewel movement
• Suitable for Military and commercial applications.
available to DEF STAN 66-7

The Marine hermetically sealed range of panel meters has been designed to comply with the most stringent of marine and military applications, and has been engineered to withstand severe operating conditions. Because of this high specification they have often been used in other industrial areas where the robust sealed case design protects the movement system from harsh environmental factors.

The two standard sizes include the 4AH indicator which has a front zero adjuster, a moulded glass window and platform dial to reduce parallax error.
The 2AH indicator has a non-reflective toughened glass
window with a flat dial and knife pointer to improve scale readability.

The Marine hermetically sealed range utilises the 240° ’Premier’ movement. This proven movement system has been manufactured using the very best precision components and automated production facility. These factors give the movement system it’s inherent reliability, linearity and accuracy. Dials are marked to customer’s requirements and can include coloured indices/lines/bands, dual multi scales and customer’s name/logo etc. Instruments are available for AC or dc. applications. For large AC or dc current and voltage applications, we could supply complete with external current/voltage trans-formers, shunts or suitable transducers.

OPTIONAL FEATURES

The 4AH meter can be illuminated internally. Long life filament lamps within the case illuminate a translucent dial. Because the case is sealed two spare lamp sets are also fitted and can be utilised if one set fails. The 2AH meter can be fitted with a 2 part dial and bold pointer to enhance the appearance and maintain readability. A rear zero adjuster can also be supplied.

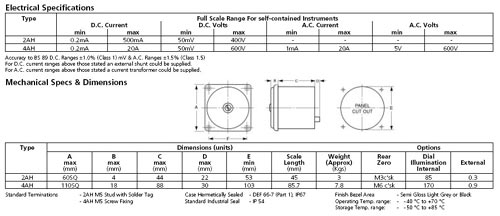

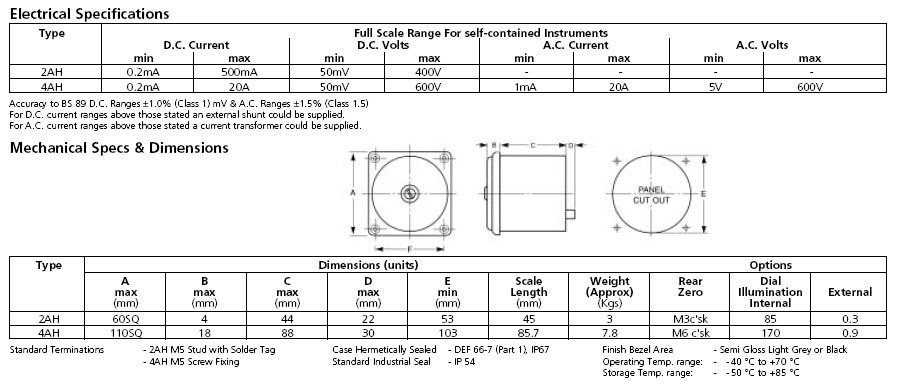

CLICK ON DIAGRAM TO VIEW LARGER
